Active PFC in Industrial Power Supplies: Engineering Guide for OEMs

Power factor correction (PFC) is not optional for most industrial power supplies sold in global markets. Regulatory standards including IEC 61000-3-2 and its regional equivalents require power supplies above 75W to limit harmonic current emissions. Active PFC is the dominant method for meeting these requirements while maintaining high efficiency across the load range.

This article covers the engineering principles, topology choices, regulatory landscape, and selection criteria that OEM design engineers need when specifying power supplies with active PFC for industrial applications.

What Is Power Factor Correction and Why Does Industry Need It?

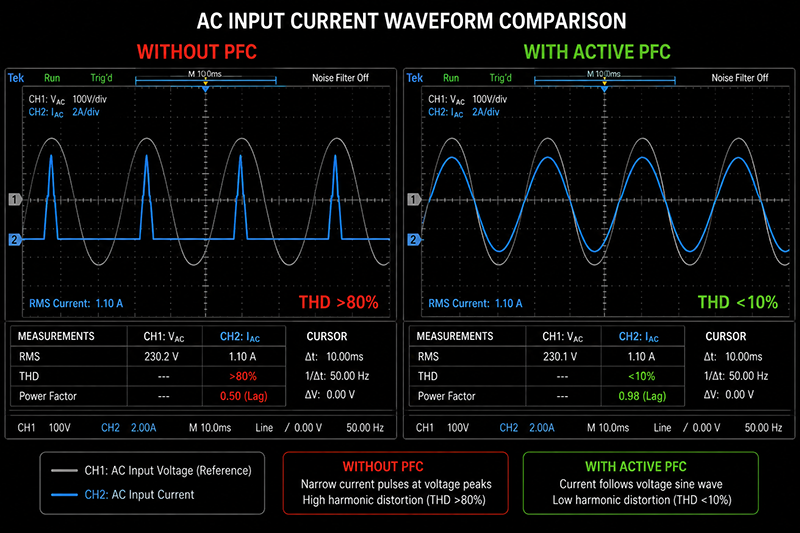

Power factor is the ratio of real power (watts) to apparent power (volt-amperes) in an AC circuit. In a purely resistive load, the power factor is 1.0 — current and voltage are in phase, and all drawn power performs useful work. In a conventional power supply without PFC, the input stage uses a bridge rectifier and bulk capacitor, drawing current only near the peak of each AC half-cycle. This creates a power factor of 0.5–0.65 and injects high-order harmonic currents into the mains.

The practical consequences of poor power factor in an industrial facility:

Increased distribution losses: harmonic currents cause additional I²R losses in transformers, cables, and switchgear
Reduced system capacity: transformers and generators must be oversized to deliver the same real power
Equipment interference: harmonic currents can cause neutral overloading in three-phase systems, transformer overheating, and nuisance tripping of circuit breakers
Regulatory non-compliance: products sold in the EU, China, Japan, and other regions must meet harmonic emission limits

Why This Matters

An industrial power supply operating without PFC at 0.6 power factor draws 67% more apparent current than its real power requirement, increasing distribution costs in facility-scale deployments.
Harmonic currents from multiple non-PFC supplies accumulate on shared distribution networks, creating power quality problems that affect other equipment.
Regulatory compliance is market-specific—a power supply that passes EU harmonic limits may not automatically comply with Chinese GB 17625.1 or Japanese JIS C 61000-3-2 without design verification.

OEM Actions

Determine which harmonic standards apply to your target markets (IEC 61000-3-2 Class A for most industrial equipment, Class D for equipment with special waveform characteristics).
Request the power factor curve across the full load range (10–100%) from your power supply vendor, not just the headline power factor at full load.
For multi-unit installations, calculate the cumulative harmonic impact on your facility’s distribution network.

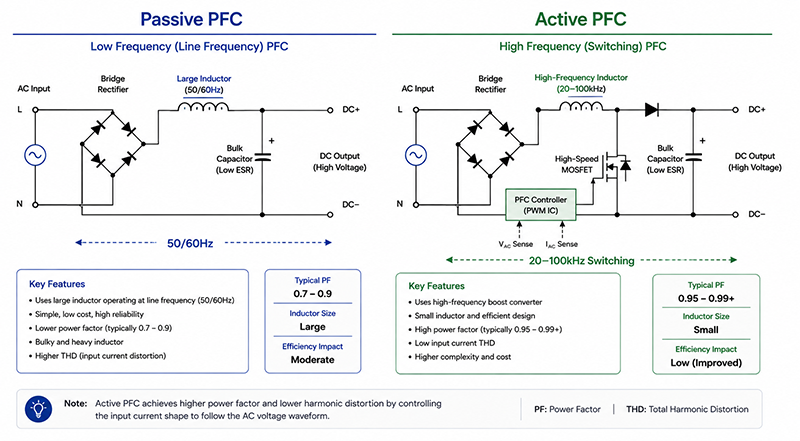

Active PFC vs Passive PFC — What Is the Difference?

Passive PFC uses a large inductor (typically 10–30mH at 50/60Hz) placed between the rectifier and bulk capacitor to smooth the input current waveform. It achieves a power factor of 0.70–0.85 and is simple and reliable, but the inductor is physically large, heavy, and has fixed compensation that varies with load.

Active PFC uses a boost converter operating at 20–100kHz between the rectifier and bulk capacitor. It shapes the input current to follow the input voltage waveform, achieving a power factor of 0.95–0.99 across a wide load range.

Parameter	Passive PFC	Active PFC
Power factor	0.70–0.85	0.95–0.99
THD (total harmonic distortion)	30–80%	< 10%
Size (for 150W)	Large (50–100mm inductor)	Compact (20–40mm magnetic + PCB area)
Weight premium	+100–300g	+20–50g
Efficiency	97–99% (inductor only)	95–98% (switching losses)
Input voltage range	Narrow (±10%)	Wide (90–264VAC universal)
Cost premium (150W)	+$1–2	+$3–6
Regulatory compliance	Limited (may not meet IEC Class D)	Full compliance

Why This Matters

Active PFC enables universal input voltage range (90–264VAC), which passive PFC cannot achieve efficiently.
In industrial equipment with multiple internal loads (motor drives, control logic, I/O modules), a single active PFC stage at the AC input corrects the entire system’s power factor rather than requiring per-load correction.
The efficiency penalty of active PFC (1–3% loss in the boost stage) is typically offset by the elimination of downstream component oversizing caused by poor input power factor.

OEM Actions

For applications requiring universal input voltage (global product SKUs), active PFC is the only practical choice.
For single-market, fixed-voltage industrial equipment operating below 75W, evaluate whether passive PFC or no PFC meets regional harmonic limits.
Request total harmonic distortion (THD) data at 25%, 50%, 75%, and 100% load — an active PFC supply should maintain THD below 15% across this range.

What Active PFC Topologies Are Used in Industrial Power Supplies?

The most common active PFC topology for power supplies in the 75–1000W range is the boost converter operating in continuous conduction mode (CCM). It offers a good balance of efficiency, component stress, and control simplicity.

Topology	Power Range	Peak Efficiency	Typical Application
CCM Boost PFC	75–1000W	96–98%	Most desktop and enclosed industrial supplies
Boundary/Transition Mode (CrM) PFC	75–300W	95–97%	Smaller industrial, LED drivers
Interleaved PFC	500–3000W	97–99%	High-power industrial, server supplies
Bridgeless PFC	500–3000W	97–99%	High-efficiency industrial, telecom
Vienna Rectifier (three-phase)	1–10kW	97–99%	Three-phase industrial drives

Why This Matters

The PFC topology determines the power factor, THD, and efficiency characteristics at each load point — not all “active PFC” supplies perform identically.
Industrial equipment operating at light load (standby, idle) should maintain power factor above 0.9. Some PFC controllers disable at light load, reverting to passive rectifier behavior with power factor dropping to 0.5–0.6.
For three-phase industrial installations (common in factory automation, HVAC, pumps), Vienna rectifier topologies offer the highest efficiency but require more complex gate drive and control circuitry.

OEM Actions

Verify that the PFC stage remains active at your equipment’s typical operating load, not just at full rated output.
For power levels above 500W, evaluate whether single-stage CCM or interleaved PFC provides better thermal distribution and component lifetime.
Request conducted EMI test data with the PFC stage active — PFC switching creates noise in the 150kHz–10MHz range that must be managed by the input filter.

How Does Active PFC Affect Efficiency and Thermal Design?

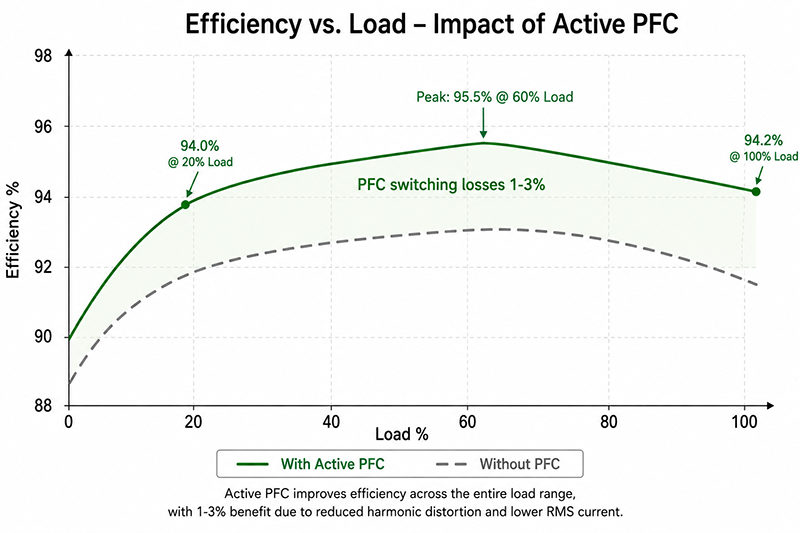

The PFC stage adds 1–3% efficiency loss compared to a non-PFC input stage. However, the overall system benefit is positive because downstream conversion stages (DC-DC) operate from a regulated high-voltage bus (typically 380–400VDC) instead of a rectified AC waveform that varies from 120–380V depending on line conditions.

The thermal impact of active PFC concentrates on:

PFC MOSFET: Typically accounts for 40–50% of PFC stage losses. Junction temperature must be maintained below 110°C for reliable operation.
Boost diode (or SiC diode): Fast-recovery or silicon carbide diodes are used to minimize reverse recovery losses, which are significant at CCM switching frequencies.
PFC inductor: Core losses (ferrite or powdered iron) plus winding copper losses account for 25–30% of PFC stage losses. The inductor is often the hottest magnetic component in the power supply.
Input bridge rectifier: With active PFC, the rectifier conducts over a wider angle, reducing peak current stress compared to non-PFC designs but increasing average conduction losses.

Why This Matters

In a 120W industrial power supply, the PFC stage dissipates approximately 2–4W of heat that must be managed by the enclosure thermal design—typically 15–25% of total power supply losses.
Silicon carbide (SiC) diodes in the PFC stage virtually eliminate reverse recovery losses, improving efficiency by 0.3–0.8% and reducing PFC stage temperature by 5–10°C.
The PFC boost inductor is often the acoustically noisiest component (audible 20–100kHz whine). Encapsulation or frequency dithering may be required for noise-sensitive industrial environments.

OEM Actions

Request vendor data for PFC stage losses at the specific load point where your equipment operates, not just the headline efficiency number.
For noise-sensitive environments (medical, laboratory, audio), specify power supplies with frequency dithering or soft-switching PFC to minimize audible noise.
Evaluate whether a higher-wattage power supply operating at 60–70% load provides better overall thermal margin than a lower-wattage supply running near its PFC stage’s thermal limit.

How to Select a Power Supply with the Right PFC for Your Application

Step 1 — Determine regulatory requirements

EU: IEC/EN 61000-3-2 (mandatory for CE marking, >75W Class A/D)
China: GB 17625.1 (CCC certification, harmonized with IEC 61000-3-2)
Japan: JIS C 61000-3-2 (voluntary but market-expected over 75W)
USA: No federal PFC mandate, but ENERGY STAR and 80 PLUS programs incentivize PFC for efficiency above 75–100W
Global OEM: Meeting IEC 61000-3-2 is the most practical baseline for multi-market products

Step 2 — Determine power factor requirements

General industrial equipment: PF > 0.90 at full load
Power-sensitive grid-connected equipment (UPS, chargers): PF > 0.95
Three-phase industrial drives: PF > 0.95 with THD < 10%
Low-power auxiliary circuits (below 75W): PFC may not be required; verify per market

Step 3 — Verify with vendor data

Power factor curve (10–100% load, nominal input voltage)
THD curve (same load range)
Efficiency at load point with and without PFC stage engaged
PFC hold-up time: typical requirement is 10–20ms at full load for industrial equipment
EMI test report with PFC active

Why This Matters

Selecting an active PFC power supply for equipment that only operates in markets without PFC mandates adds cost and complexity without benefit.
A power supply that meets PF > 0.95 at full load may drop to PF < 0.8 at 20% load — verify the PF curve at your actual operating point.
Certifications available depending on model, application and target market. Not all PFC-equipped supplies carry the same harmonic compliance certifications.

OEM Actions

Map your target markets against harmonic emission requirements before selecting PFC type.
Request the PF and THD curves from at least two vendors to establish a benchmark for your power supply specification.
Include PFC hold-up time in your power supply specification — a well-designed PFC stage stores enough energy in the DC bus capacitor to maintain output for at least 10ms during an AC cycle dropout.

Conclusion

Active PFC is the dominant method for achieving power factor above 0.95 and meeting IEC 61000-3-2 harmonic limits in industrial power supplies. The choice of PFC topology, switching frequency, and component selection directly affects efficiency, thermal design, EMI, and cost. OEM engineers should evaluate power factor, THD, and efficiency across the full load range rather than at a single operating point, and verify regulatory compliance for each target market.
